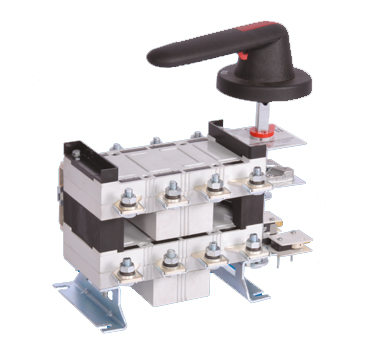

Switch Disconnectors

RANGE

• Rating: 25A ~ 3150A, 415V, AC23A
• Poles: 2P,3P,4P & 6P

FEATURES

• Modular pole design – economical maintenance
• Available in open / sheet steel enclosure version
• Quick make & break mechanism, self cleaning contacts
• Compact construction
• Door interlock and padlock facility
• Suitable for isolation
• Telescopic shaft for depth adjustment
• Door defeat
• Provision for 2NO+2NC aux contacts

Switch Disconnector Fuse
RANGE

• Rating: 32A ~ 800A, 415V, AC23A
• Poles: 2P, 3P, 3P+N & 4P

FEATURES

• Suitable for DIN / bolted type fuse-link
• Modular pole design – economical maintenance
• Available in open / sheet steel enclosure version
• Double break, quick make & break mechanism, self cleaning contacts
• Compact construction
• Door interlock and padlock facility
• Suitable for isolation
• Telescopic shaft for depth adjustment
• Door defeat
• Provision for 2NO+2NC aux contacts
• Provision for left, right & intermittent mechanism

Safety Switches

FEATURES

• Safe and Reliable
• Multi combination and protective shrouds
• The most economical solution
• First choice of Machinery / Equipment manufacturers
• These switches have established their ingenuity in breaking
  the stalled motor current in the event of emergency
• Used as maintenance switch or main switch

On-Load By Pass Switches

RANGE

• Rating: 63A ~ 1800A
• Poles: 4P

FEATURES

• By-pass Switch is designed to customers specific need in
  IT industries and sites where UPS and Servo stabilizer provides main source of supply
• All other features are same as of On Load Changeover
  Switches AC23A utilization ratings available

Changeover Switch (with & without fuse)

RANGE

• Rating: 63A ~ 3150A (without fuse); 125 ~ 800A (with fuse), 415V, AC23A
• Poles: 3P, 4P & 6P

FEATURES

• Available in open / sheet steel enclosure version
• Suitable for isolation
• Telescopic shaft for depth adjustment
• Door defeat
• Provision for 2NO+2NC aux contacts

New Changeover Switch

• Switch, Rated for AC23A

FEATURES

• Compact Construction
• Quick make Quick break mechanism
• Positive ON/OF Indication, indicates true position of contacts
• High thermal and dynamic strength to withstand rated fused short
  circuit current level of 80kA rms.
• Available in Open execution and in sheet steel enclosure
• Suitable for Capacitor Switching and as a main switch
• Silver plated copper current carrying parts
• Complete flexibility in termination
• Adjustable telescopic shaft

Off-load Changeover Switch

RANGE

• Rating: 32, 63, 100, 200, 315, 400A
• Poles: 4

FEATURES

• Rated Voltage : 415V, 50Hz
• Utilization Category : AC22A
• Side handle operated switches suitable for Off Load applications
• Enclosed fabricated steel sheet with phosphate coating by seven tank system
• Powder coated to give lasting surface protection

By Pass Switches

• With provision for 2NO+2NC aux contacts

FEATURES

• Modular pole design – economical maintenance
• Available in interior / sheet steel enclosure version
• Telescopic shaft for depth adjustment
• Large terminal capacity suitable for aluminum lugs
• Provision for 2NO+2NC aux contacts
